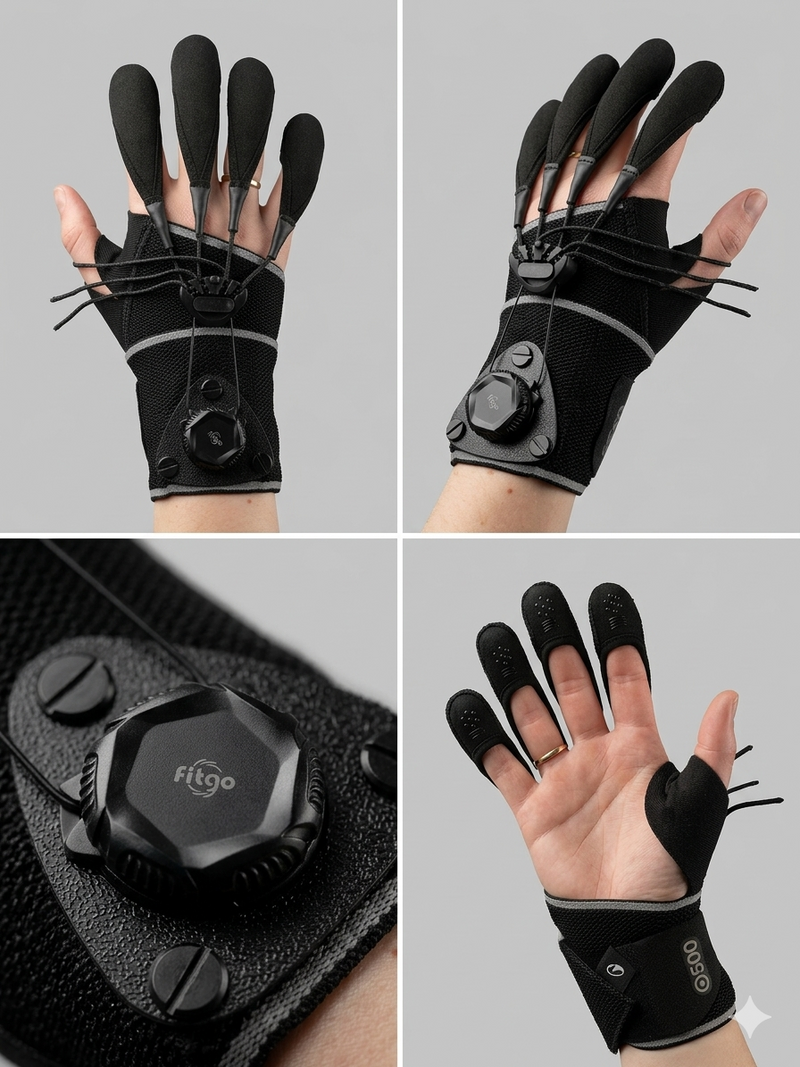

Madglove Assist - Custom Kit
The mechanism,
your orthosis.
The Madglove Assist Custom Kit makes our mechanical finger extension system fully transferable.
1
Core mechanism
6
Kit components
Multiple
Orthotic applications
Different
Needs
Kit Contents
Precision components,
clinical flexibility.
Each kit contains everything needed to transfer the Madglove Assist mechanism into any custom orthosis.
Mounting Module
Pre-assembled assist wheel + centre point in triangular baseplate
Finger Sets
Connect the system to patient fingers via tension cables
Knuckle Sliders
Precise alignment with each MCP knuckle position
Reinforcement Plate
Padded plate distributes load on the underside of orthosis
Chicago Screws ×3
Secure the mounting module through the orthosis shell
Centre Point Plug
Reinforces finger sleeves to the centre point connection
How to Install
Six steps to
full integration.
01
Select mounting location
Choose a location on the dorsal forearm just proximal to the wrist — where the orthosis provides maximum structural stability while preserving wrist movement.
02
Mark screw positions
Place the mounting module on the orthosis and mark the three Chicago screw hole positions accurately before drilling.
03
Create mounting holes
Punch three holes through the orthosis shell. Recommended hole diameter is 5mm for a precise, secure fit.
04
Position reinforcement plate
Place the padded reinforcement plate on the inside with the padding facing the user's skin for comfort.
05
Install Chicago screws
Secure the mounting module through the orthosis shell using the three included Chicago screws.
06
Attach finger sliders
Route finger sliders to the central point of the wheel system following the standard Madglove Assist configuration.
01
Select mounting location
Choose a location on the dorsal forearm just proximal to the wrist where structural stability is highest.
Compatibility
One kit,
any orthosis.
Because the Madglove Assist mechanism is fully transferable, it can be integrated into virtually any custom orthosis.
WHO
Wrist-Hand Orthosis
Standard prefabricated or custom wrist-hand orthoses. Module mounts on the dorsal forearm surface with minimal modification.
Compatible
WHFO
Wrist-Hand-Finger Orthosis
Full hand orthoses providing wrist and finger support. Cable routing integrates naturally with existing finger channels.
Compatible
DHO
Dynamic Hand Orthosis
Dynamic orthoses designed for active movement. The Assist mechanism complements existing dynamic components.
Compatible
Hybrid
Hybrid Hand Orthosis
Rigid and textile hybrid designs. The mounting module attaches to the rigid dorsal section with standard hardware.
Compatible
3D Print
Custom 3D Printed Orthosis
Custom 3D printed orthoses can be designed with pre-planned mounting holes for seamless integration.
Compatible
Carbon
Carbon Fibre Orthosis
Lightweight carbon fibre shells. The Chicago screw system creates a secure mechanical bond with the composite material.
Compatible
Notice
Any braces shown are for demonstration purposes only. Orthotists and CPOs should fabricate a custom orthosis according to their clinical judgement.
Clinical Partners
Shaping the future
of hand rehabilitation.
We are looking for clinical partners to help develop new ways to integrate Madglove Assist into practice.
